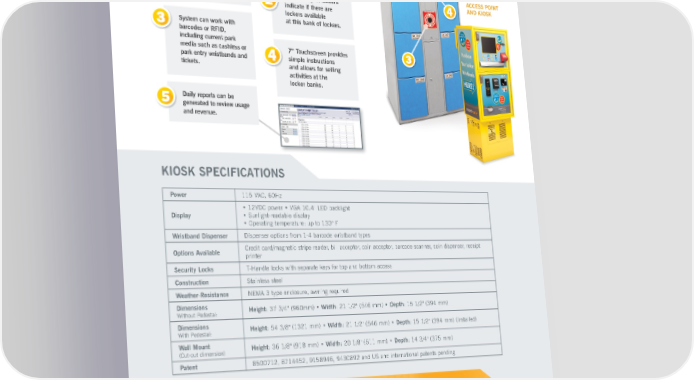

A robust locker system with multiple access and payment options. TM Smarte Door sensors detect presence of items ACCESS POINT in lockers. Light on top of lockers AND KIOSK indicate if there are lockers available System can work with at this bank of lockers. barcodes or RFID, including current park media such as cashless or 7” Touchscreen provides park entry wristbands and simple instructions tickets. and allows for selling activities at the locker banks. Daily reports can be generated to review usage and revenue. KIOSK SPECIFICATIONS Power 115 VAC, 60Hz • 12VDC power • VGA 10.4" LED backlight Display • Sunlight-readable display • Operating temperature: up to 130° F Wristband Dispenser Dispenser options from 1-4 barcode wristband types Options Available Credit card/magnetic stripe reader, bill acceptor, coin acceptor, barcode scanner, coin dispenser, receipt printer Security Locks T-Handle locks with separate keys for top and bottom access Construction Stainless steel Weather-Resistance NEMA 3 type enclosure, awning required Dimensions Height: 37 3/4" (960mm) • Width: 21 1/2" (546 mm) • Depth: 15 1/2" (394 mm) Without Pedestal: Dimensions Height: 54 3/8" (1321 mm) • Width: 21 1/2" (546 mm) • Depth: 15 1/2" (394 mm) (installed) With Pedestal: Wall Mount Height: 36 1/8" (918 mm) • Width: 20 1/8" (511 mm) • Depth: 14 3/4" (375 mm) (Cut-out dimension) Patent 8500712, 8714452, 9158946, 9430892 and US and international patents pending NORTH AMERICA AUSTRALIA AND NEW ZEALAND www.smartecarte.com www.smartecarte.com.au 4455 White Bear Parkway, St. Paul, MN 55110-7641 PO Box 5054, Melbourne Airport, Victoria 3045, Australia Phone: 651-429-3614 • 1-800-838-1176 (toll-free) Phone: +61 (3) 9338 3111 Fax: 651-426-0927 • [email protected] Fax: +61 (3) 9338 3316 • [email protected] LOCKERLINK-1001 9-26-16
